城市生命线安全工程 监测数据预处理 异常数据识别 滑动中位数与MAD 方法 数据补全与可视化

📚 项目背景

在桥梁结构健康监测系统中，采集到的温度、应变、位移等传感器数据可能由于设备漂移、环境扰动或通信故障出现突变或缺失，直接影响后续的数据建模与预警分析。

为提升监测数据的可信度和稳定性，构建本模块用于自动识别异常点并进行数据清洗与补全，为城市桥梁生命线安全平台提供基础数据保障。

📌 模块简介

本模块为城市生命线安全工程监测平台桥梁专项的数据分析子模块：异常识别与处理，支持单通道时间序列的异常点识别与自动补全，采用鲁棒滑动中位数与MAD的迭代方法，结合插值与前后填充方法进行数据补全，支持图像与终端表格输出。

项目 内容
模块名称 data_preprocessing
核心功能 滑动中位数+MAD异常检测、数据插值补全、图表输出
典型应用 结构健康数据预处理、预警建模前清洗步骤、图形展示
作者 肖图刚
开发时间 2025‑06‑24
最后修改 2025‑06‑24（新增异常点表格输出与方法信息提示）
支持平台 城市生命线安全工程监测平台 / 地市级桥梁结构健康系统

🌟 功能描述

✅ 基于滑动中位数与MAD的鲁棒异常检测（多轮迭代剔除）

✅ 数据修复功能：插值 + 向前向后填充组合补全缺失

✅ 图像对比可视化：原始数据、清洗数据与异常点同图显示

✅ 终端表格输出异常点详情：含时间与数值，支持 tabulate 美化格式

✅ 支持中文输出与图例美化（内置中文字体设置）

✅ 模块化封装，便于外部调用与集成

📂 输入数据说明

  • 文件格式：CSV
  • 时间列名：time
  • 数据列名：value
时间 value
2025-06-01 00:00:00 15.23
2025-06-01 01:00:00 15.27
2025-06-01 02:00:00 65.33 ← 异常点

⚙️ 运行环境与依赖

  • Python ≥ 3.9
库 版本要求
numpy ≥ 2.0.2
pandas ≥ 2.2.3
matplotlib ≥ 3.9.0
tabulate（可选） ≥ 0.9.0

安装依赖：

pip install -r requirements.txt

🛠️ 使用说明

安装模块

pip install -e .

快速运行示例

python example.py

或在其他脚本中调用（example.py）：

from pathlib import Path
import pandas as pd
from data_preprocessing import preprocess_series, plot_comparison, print_outliers

def main():
    csv_path = "datasets/temp_ori_1week.csv"
    out_path = "figures/异常识别与处理曲线.png"
    out_csv = "output/预处理后的数据.csv"

    df = pd.read_csv(csv_path)
    ts = pd.to_datetime(df["time"])
    series = pd.Series(df["value"].values, index=ts)

    cleaned, outliers, outlier_method_name, fill_method_name = preprocess_series(
        series, outlier_thresh=3, window_size=24, min_amplitude=1.0
    )

    print(f"📌 当前异常检测方法：{outlier_method_name}")
    print(f"📌 当前缺失数据补全方法：{fill_method_name}")

    plot_comparison(series.index, series, cleaned, outliers, out_path=out_path)
    print_outliers(series.index, series, outliers)

    Path(out_csv).parent.mkdir(exist_ok=True)
    pd.DataFrame({
        "时间": series.index,
        "原始值": series.values,
        "清洗后值": cleaned.values,
        "是否离群": outliers.values.astype(int)
    }).to_csv(out_csv, index=False)
    print(f"✅ 清洗结果已保存至: {Path(out_csv).resolve()}")

if __name__ == "__main__":
    main()

🔢 模块主要流程

  1. 读取时间序列数据（CSV）
  2. 基于滑动中位数 + MAD 检测异常点（可设置滑窗大小、阈值）
  3. 多轮迭代清洗异常点并补全数据（插值 + 填充）
  4. 输出清洗前后对比图像
  5. 打印异常点详细表格
  6. 保存清洗结果到CSV

📈 输出结果说明

  • 清洗图像：位于 figures/异常识别与处理曲线.png
  • 清洗数据CSV：位于 output/预处理后的数据.csv
  • 终端输出：打印包含异常检测方法、补全方法说明、异常点表格

示例表格输出：

📌 当前异常检测方法：鲁棒滑动中位数+MAD迭代检测
📌 当前缺失数据补全方法：时间插值 + bfill + ffill
✅ 图像已保存至: D:\pycode\lifeline_bridge_alert\py_modu\data_preprocessing\figures\异常识别与处理曲线.png

🛑 检测到的异常点数量：68 个
📋 异常点详细信息如下：
+----------------------------+----------+
| 时间                       |   异常值 |
+============================+==========+
| 2024-04-01 00:01:59.666000 |      7.9 |
+----------------------------+----------+
| 2024-04-01 00:03:47.571000 |      8.1 |
+----------------------------+----------+
| 2024-04-01 00:05:27.705000 |      7.9 |
+----------------------------+----------+
| 2024-04-01 02:38:50.455000 |      4.8 |
+----------------------------+----------+
| 2024-04-01 03:04:50.745000 |      1.2 |
+----------------------------+----------+
| 2024-04-01 03:05:02.012000 |     10.4 |
+----------------------------+----------+
| 2024-04-01 03:05:05.317000 |      0.7 |
+----------------------------+----------+
| 2024-04-01 03:17:37.660000 |      4.5 |
+----------------------------+----------+
| 2024-04-01 03:17:39.881000 |      1.7 |
+----------------------------+----------+
| 2024-04-01 03:35:43.352000 |      5.4 |
+----------------------------+----------+
| 2024-04-01 04:10:26.580000 |      4.6 |
+----------------------------+----------+
| 2024-04-01 04:13:50.868000 |     -1   |
+----------------------------+----------+
| 2024-04-01 04:13:53.203000 |     -1   |
+----------------------------+----------+
| 2024-04-01 04:13:56.524000 |      3.9 |
+----------------------------+----------+
| 2024-04-01 04:14:02.571000 |      4.3 |
+----------------------------+----------+
| 2024-04-01 04:18:35.679000 |      5.3 |
+----------------------------+----------+
| 2024-04-01 04:39:06.037000 |      2.1 |
+----------------------------+----------+
| 2024-04-01 04:56:22.928000 |      4.9 |
+----------------------------+----------+
| 2024-04-01 05:04:08.940000 |      4.7 |
+----------------------------+----------+
| 2024-04-01 05:04:19.305000 |      1.4 |
+----------------------------+----------+
| 2024-04-01 05:07:01.647000 |     -3.4 |
+----------------------------+----------+
| 2024-04-01 05:07:08.566000 |     -3.9 |
+----------------------------+----------+
| 2024-04-01 05:07:12.069000 |     -3.4 |
+----------------------------+----------+
| 2024-04-01 05:07:29.267000 |      5.9 |
+----------------------------+----------+
| 2024-04-01 05:07:31.710000 |      1.7 |
+----------------------------+----------+
| 2024-04-01 05:07:34.569000 |     -4.3 |
+----------------------------+----------+
| 2024-04-01 05:10:16.307000 |      1.5 |
+----------------------------+----------+
| 2024-04-01 05:11:59.141000 |      8.9 |
+----------------------------+----------+
| 2024-04-01 05:15:12.899000 |      0.1 |
+----------------------------+----------+
| 2024-04-01 05:32:41.679000 |      0.4 |
+----------------------------+----------+
| 2024-04-01 05:35:13.926000 |      7.4 |
+----------------------------+----------+
| 2024-04-01 05:35:29.621000 |     -4.7 |
+----------------------------+----------+
| 2024-04-01 05:35:31.489000 |     -4.2 |
+----------------------------+----------+
| 2024-04-01 05:41:47.965000 |      0.2 |
+----------------------------+----------+
| 2024-04-01 05:56:23.782000 |      2.1 |
+----------------------------+----------+
| 2024-04-01 05:56:27.029000 |      1.2 |
+----------------------------+----------+
| 2024-04-01 05:58:51.962000 |     -3.2 |
+----------------------------+----------+
| 2024-04-01 05:59:03.169000 |     10   |
+----------------------------+----------+
| 2024-04-01 06:06:31.034000 |      0.3 |
+----------------------------+----------+
| 2024-04-01 06:16:30.620000 |      0.7 |
+----------------------------+----------+
| 2024-04-01 06:25:33.698000 |      4.2 |
+----------------------------+----------+
| 2024-04-01 06:30:30.276000 |      0.8 |
+----------------------------+----------+
| 2024-04-01 06:30:34.157000 |     -2.5 |
+----------------------------+----------+
| 2024-04-01 06:49:35.503000 |     -2.2 |
+----------------------------+----------+
| 2024-04-01 06:49:38.647000 |     -2.2 |
+----------------------------+----------+
| 2024-04-01 06:49:57.899000 |      5.7 |
+----------------------------+----------+
| 2024-04-01 06:57:24.128000 |     -1.5 |
+----------------------------+----------+
| 2024-04-01 06:57:35.591000 |      3.6 |
+----------------------------+----------+
| 2024-04-01 07:17:02.714000 |      0.9 |
+----------------------------+----------+
| 2024-04-01 07:21:13.552000 |      1.3 |
+----------------------------+----------+
| 2024-04-01 07:33:36.218000 |     -1.9 |
+----------------------------+----------+
| 2024-04-01 07:35:35.549000 |      1.6 |
+----------------------------+----------+
| 2024-04-01 07:57:37.147000 |     -2.3 |
+----------------------------+----------+
| 2024-04-01 07:57:49.856000 |      1.8 |
+----------------------------+----------+
| 2024-04-01 07:57:57.467000 |      5.6 |
+----------------------------+----------+
| 2024-04-01 08:07:15.540000 |      4   |
+----------------------------+----------+
| 2024-04-01 08:14:26.695000 |     -0.9 |
+----------------------------+----------+
| 2024-04-01 08:14:45.982000 |      3.7 |
+----------------------------+----------+
| 2024-04-01 08:14:47.771000 |     -3.7 |
+----------------------------+----------+
| 2024-04-01 08:14:51.262000 |     -2.3 |
+----------------------------+----------+
| 2024-04-01 08:15:14.566000 |      9.5 |
+----------------------------+----------+
| 2024-04-01 08:15:17.393000 |     -2.7 |
+----------------------------+----------+
| 2024-04-01 08:27:43.900000 |      1   |
+----------------------------+----------+
| 2024-04-01 08:30:27.238000 |      2.6 |
+----------------------------+----------+
| 2024-04-01 08:55:57.133000 |      2.7 |
+----------------------------+----------+
| 2024-04-01 08:56:11.007000 |      2.7 |
+----------------------------+----------+
| 2024-04-01 08:56:16.461000 |      3.1 |
+----------------------------+----------+
| 2024-04-01 08:57:29.463000 |      2.7 |
+----------------------------+----------+
✅ 清洗结果已保存至: D:\pycode\lifeline_bridge_alert\py_modu\data_preprocessing\output\预处理后的数据.csv

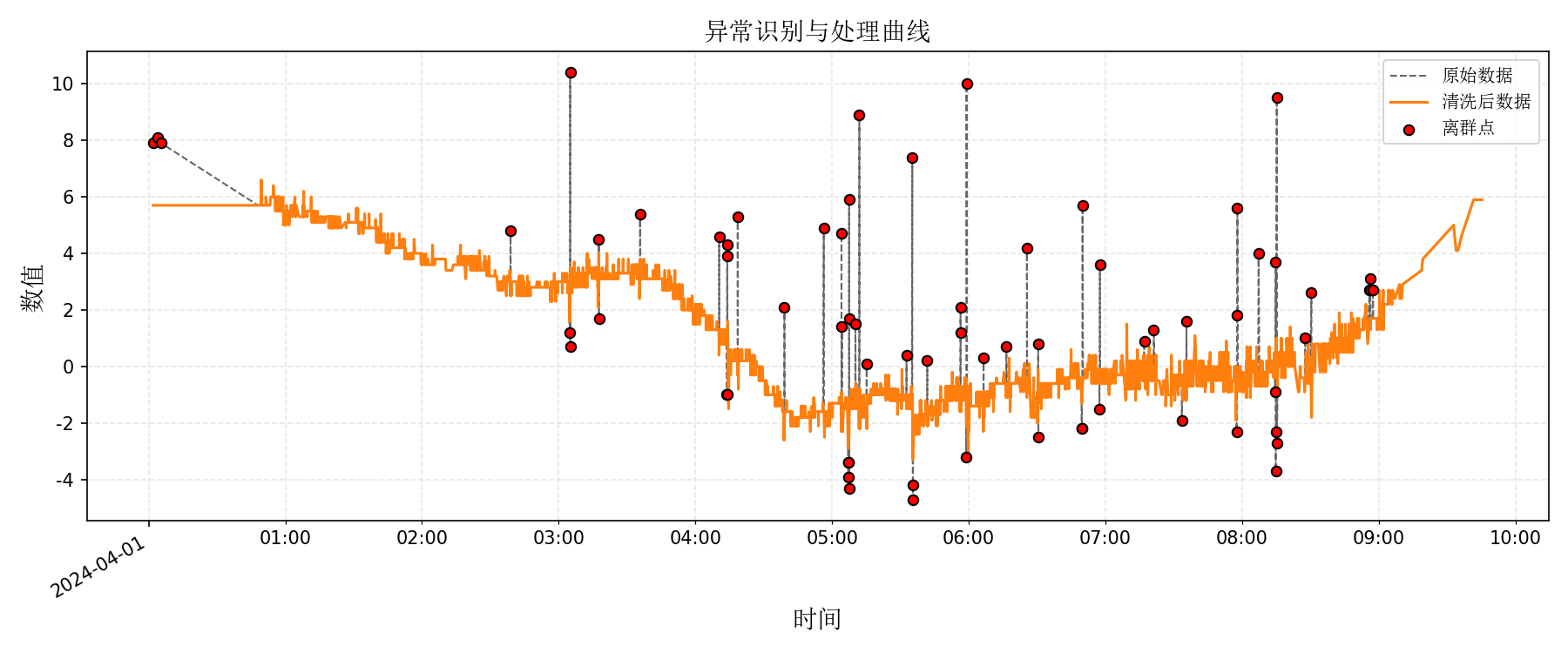

示例输出图表： 异常识别与处理曲线

🔁 拓展建议

  1. 支持生命线平台的在线数据流
  2. 支持多通道批量清洗接口（多传感器并行）
  3. 支持滑动 GMM 异常检测与可自定义检测规则
  4. 集成流式数据处理（用于边采边清洗的实时处理场景）
  5. 拓展前端接口调用（如 Streamlit） 返回首页
